Horizontal Single-spindle Hole Drilling Tapping Milling Engraving Machine for Beams

Name: Horizontal Singlespindle Hole Drilling Tapping Milling Engraving Machine for Beams
Brand: FAST
Price: 65900 USD

Horizontal Single-spindle Hole Drilling Tapping Milling Engraving Machine for Beams Manufactures

Brand Name : FAST

Model Number : WZ400

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1set

Price : 65900~79000USD

Payment Terms : L/C, T/T

Supply Ability : 300sets

Delivery Time : 90days

Packaging Details : Film

Product name : Beam Horizontal Drilling Machine

After-sales Service Provided : Online Support

Application : Metal Processing

Max. drilling diameter : 50mm

Function : Drilling,Milling,Tapping,Engraving

Speed : 3000rpm

Spindle taper : BT40

Spindle power : 18kW

Tapping : M27

Contact Now

Horizontal Single-Shaft CNC Drilling Machine for H-Beam, U-Channel, Angle, Around Pipe, Square Pipe in Steel Structure

Horizontal Single-spindle Hole Drilling Tapping Milling Engraving Machine for Beams

APPLICATION

This machine is mainly used for single-sided drilling of H-shaped steel (L, T-shaped steel), channel steel and square pipe, and is widely used in steel structure buildings, bridges, three-dimensional garages and other industries. The 4+1-axis CNC single-sided drilling machine for profiled steel adopts a structure in which the host moves and the workpiece is fixed.Servo motors realize the positioning of the spindle on the side of the profiled steel, that is, the longitudinal direction and the vertical direction, and the servo feeding of one spindle. The spindle is driven by a servo spindle motor via a pulley and a belt. This machine tool has high hole positioning accuracy and high drilling efficiency, and is an indispensable equipment in the steel structure manufacturing industry.
Machine tool functions: drilling, milling, tapping, scraping.
The machine can be equipped with a tool magazine.

FEATURES

Craft:
Put the workpiece on the worktable → the workpiece close to the reference side → check whether the tool in the tool magazine meets the processing requirements → tool setting (only when the tool length changes) → start the program to automatically drill holes→ Finished drilling → Take workpiece away from the worktable.

TECHNICAL DATA

Name		Unit	Specifications
H-beam: Max. height × Max. width		mm	400×400
H-beam: Max. height × Max. width		mm	150×150
Max. Workpiece length		mm	14000
Maximum workpiece weight		kg	3500
Max. workpiece web thickness		mm	≤30
Spindle Qty		Pc	1
Spindle end taper			BT40(Pneumatic loose tool)
Max. Drilling Diameter		mm	10-40
Tapper		mm	M27
Spindle power		kW	18
Spindle Rated Torque		Nm	118
Spindle speed range		r/min	0~3000
Spindle feed speed		mm/min	0~4000
Spindle feed stroke(Z)		mm	500
Spindle axis(Y)		mm	400
Clamp positioning axis(X1)		mm	14000
Spindle movement stroke(X2)		mm	150
Hydraulic clamp opening		mm	550
Hydraulic clamp max force		t	7 adjustable
Working Precision	Hole distance error in hole group	mm	≤±0.2
	Hole spacing error of adjacent hole groups	mm	≤±0.3
Drill cooling method		Spray cooling, external+inner cooling
Bearing, sliding block lubrication method				Automatic lubrication
Worktable Size L×W		mm		14500x1200x1000mm
Total power		kW		About 30
Overall Dimensions L×W×H		mm		About 15500×2200×2200
Control Method		CNC Controlling System
CNC Axes		4+1
ATC Automatic Tool Changer		8

DETAIL IMAGES

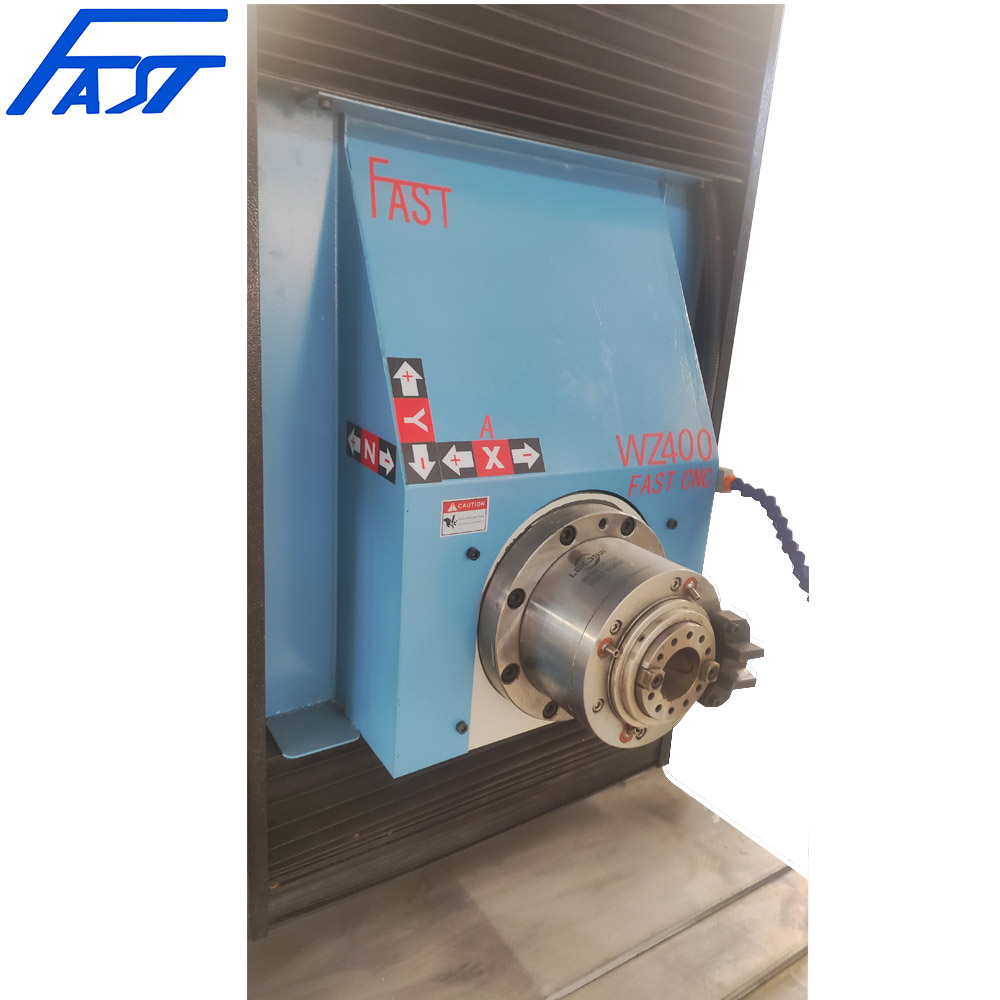

Horizontal Single-spindle Hole Drilling Tapping Milling Engraving Machine for Beams

SAMPLES

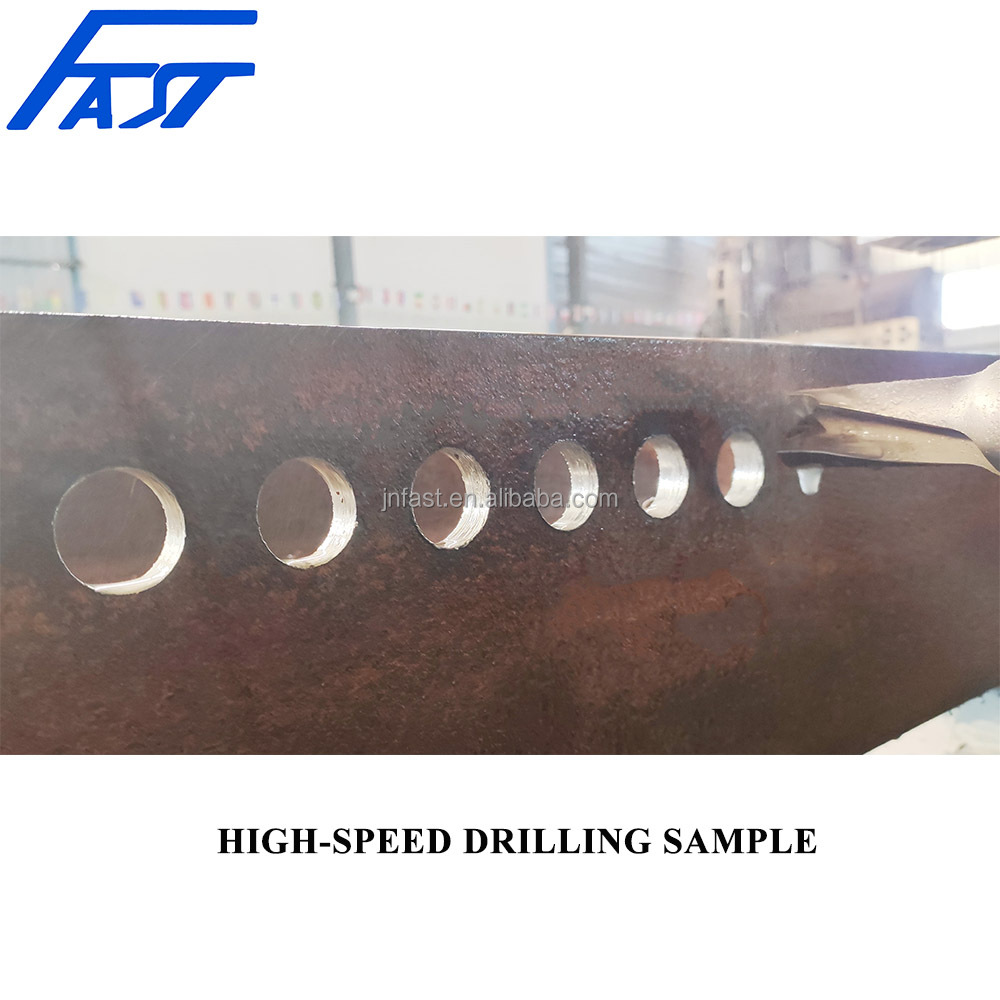

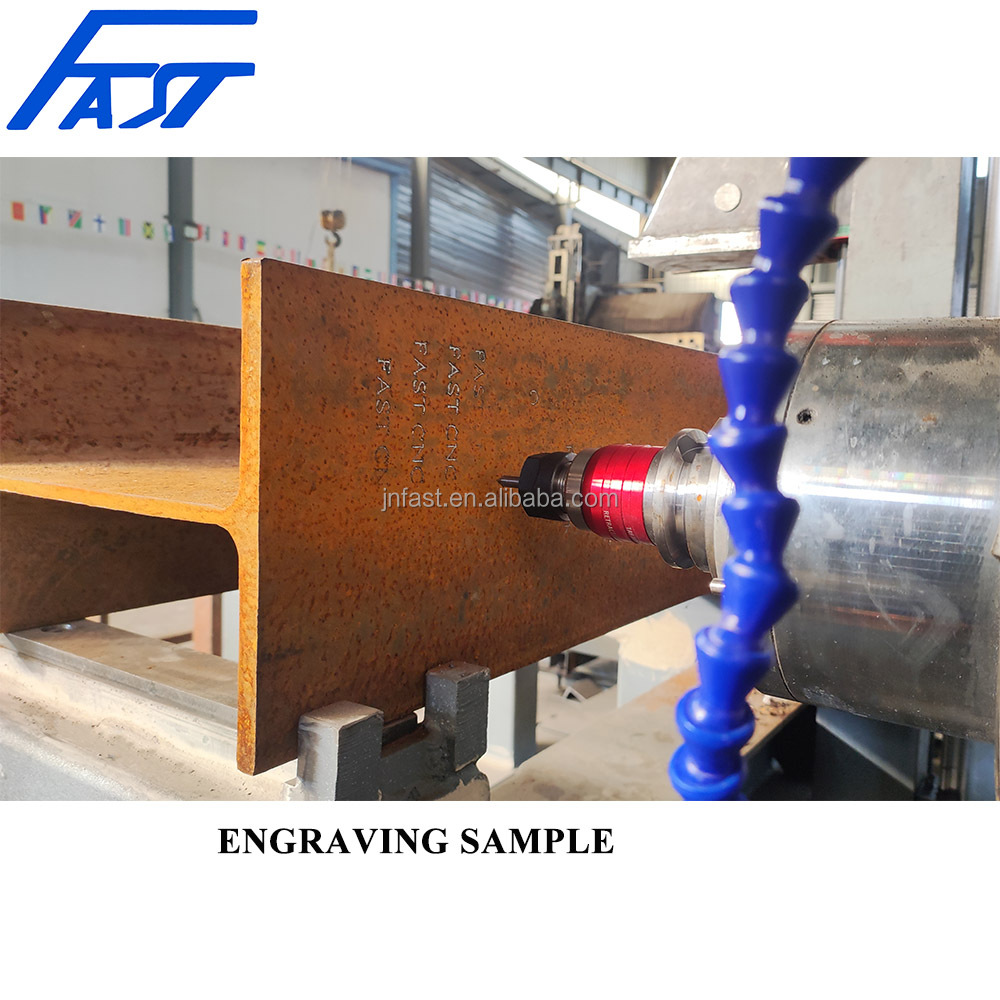

Horizontal Single-spindle Hole Drilling Tapping Milling Engraving Machine for Beams
